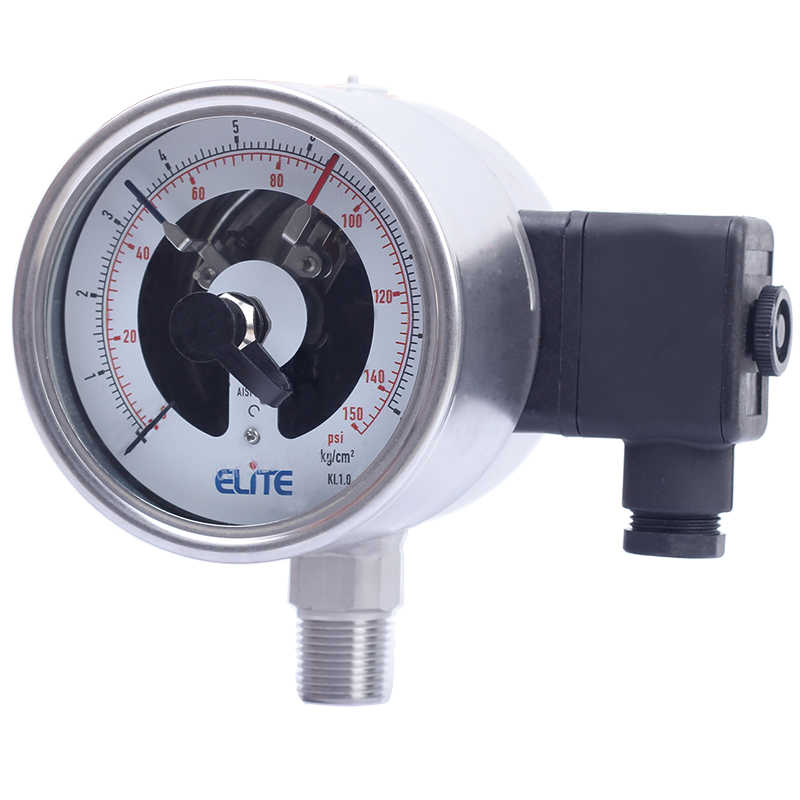

All SS Electric Contact Pressure Gauges

SKU:P-27

Category:

Pressure

Description
Datasheet

Product Description

SPECIAL FEATURES

Wetted Parts AISI 316L Stainless Steel

Dry or Liquid Version

NACE MR 0175 Compliance

Helium Leak Tested

Internal Vacuum/ Over Pressure Stops

IP:65

SPECIFICATION

Ambient Temperature : -4 ?F (-20?C) to + 150?F (+65?C)

Process Temperature : Max. 392?F (200?C)

Operating Pressure Range : 75% of Scale Value

Over Pressure Limit : 125% of Max. Scale Value

Case : AISI 3 04 SS

Joints : Tig Argon Arc Welding

Socket : AISI 316L SS

Bourdon: AISI 316L SS

Movement : AISI 304 SS

Dial :Aluminum

Pointer : Fixed

Contact: Silver-Nickel

Window : Safety Glass

Range : Vacuum to 10,000PSI

ACCURACY AS PER ASME B.40.1

4?/6? : 1-1-1 (GRADE 1A)
