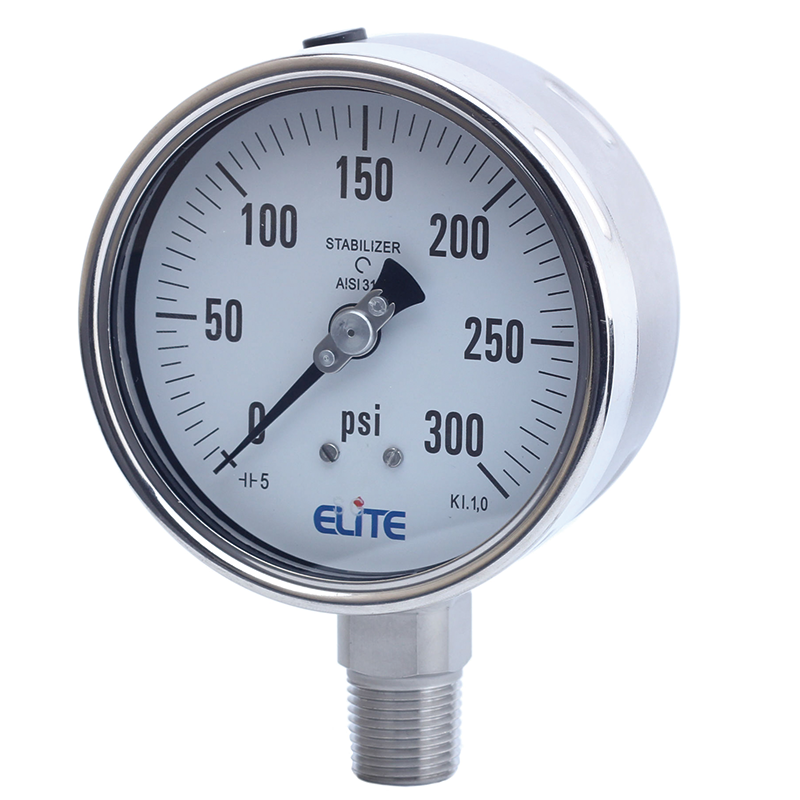

All SS Pressure Gauges (DIN Case)

SKU:P-25

Category:

Pressure

Description
Datasheet

Product Description

SPECIAL FEATURES

Standard Followed ASME-B 40.1 / EN837-1

Wetted Parts AISI 316L Stainless Steel

Build in Stabilizer Movement

Dry or Liquid Version

NACE MR 0175 Compliance

Helium Leak Tested

40mmTemperature Compensated Blow Out Disc

Internal Vacuum/ Over Pressure Stops

IP 66

SPECIFICATION

Ambient Temperature : -4 ?F (-20?C) to + 150?F (+65?C)

Process Temperature : Max. 392?F (200?C)

Operating Pressure Range : 75% of Scale Value

Over Pressure Limit : 125% of Max. Scale Value

Case : AISI 304 SS

Joints : Tig Argon Arc Welding

Socket : AISI 316L SS

Bourdon: AISI 316L SS

Movement : AISI 304 SS

Dial : Aluminum

Pointer : Micro Zero Adjustable

Window : Safety Glass

Range : Vacuum to 10,000psi

ACCURACY AS PER ASME B.40.1

2.5″/3? : 2-1-2 (GRADE A)

4?/6?/8?/10? : 1-1-1 (GRADE 1A)
