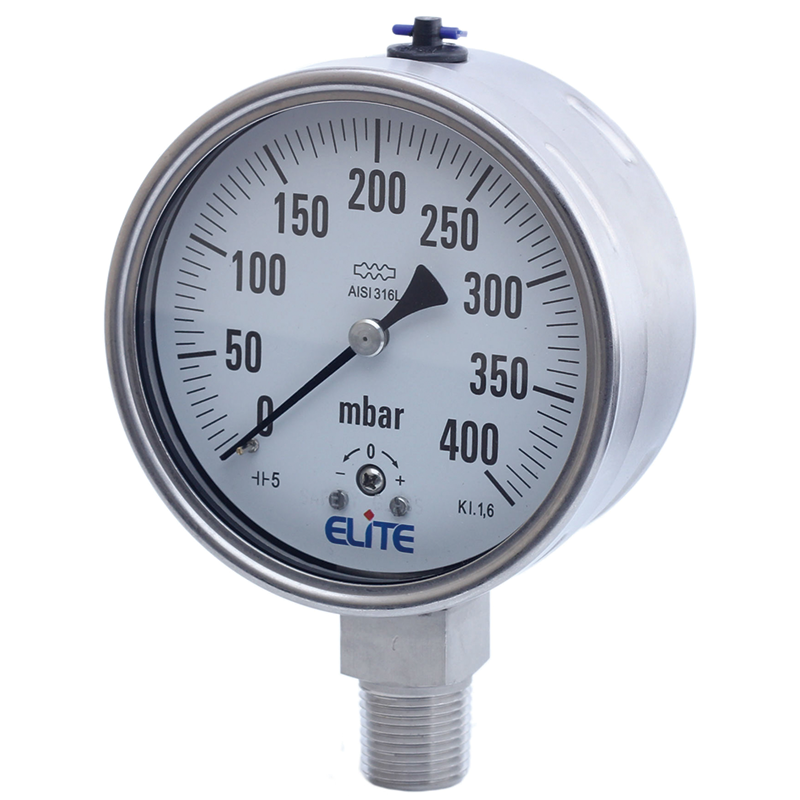

All SS Pressure Guage Capsule Type (Low Pressure)

SKU:P-06

Category:

Pressure

Description
Datasheet

Product Description

SPECIAL FEATURES

Standard Followed ASME-B 40.1 / EN837-3

Wetted Parts AISI 316L Stainless Steel

Helium Leak Tested

External Zero Adjustable

Ready For Oxygen Service

IP 65

SPECIFICATION

Ambient Temperature: -4?(-20?) to+150?(+65?)

Process Temperature: Max. 212?(100?)

Operating Pressure Range: 75% of Scale Value

Over Pressure Limit: 110% of Max.Scale Value

Case: AISI 304 SS

Joints: Tig Argon Arc Welding

Socket: AISI 316L SS

Capsule: AISI 316L SS

Movement: AISI 304 SS

Dial: Aluminum

Pointer: Fixed

Window: Safety Glass

Ranges: -250-0″wc to 0-250″wc

ACCURACY AS PER ASME B.40.1

2.5?/3″/4?/4.5″/6″ : 2-1-2 (Grade A)
