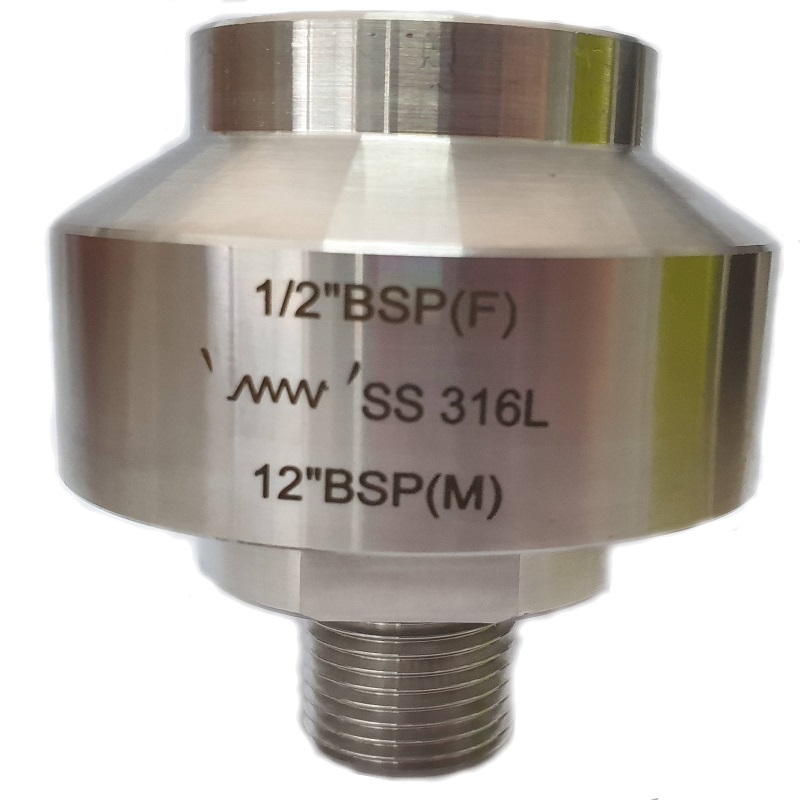

Process Temperature : -40?C to 200?C or as per fill fluid
Instrument Connection : 1/2″ BSP (F)
Process Connection: 1/2″BSP(M)
Fill Fluid : Silicon Oil- DC 200
Mounting : Direct ( Without Capillary)
Diaphragm: AISI 316L SS
Body: AISI 316 SS
APPLICATIONS
Diaphragm seals are designed to Isolate the sensing element of Pressure Gauges and Pressure Switches from process fluids that they may be Corrosive,Viscous, Sedimentous and /or with high temperature
