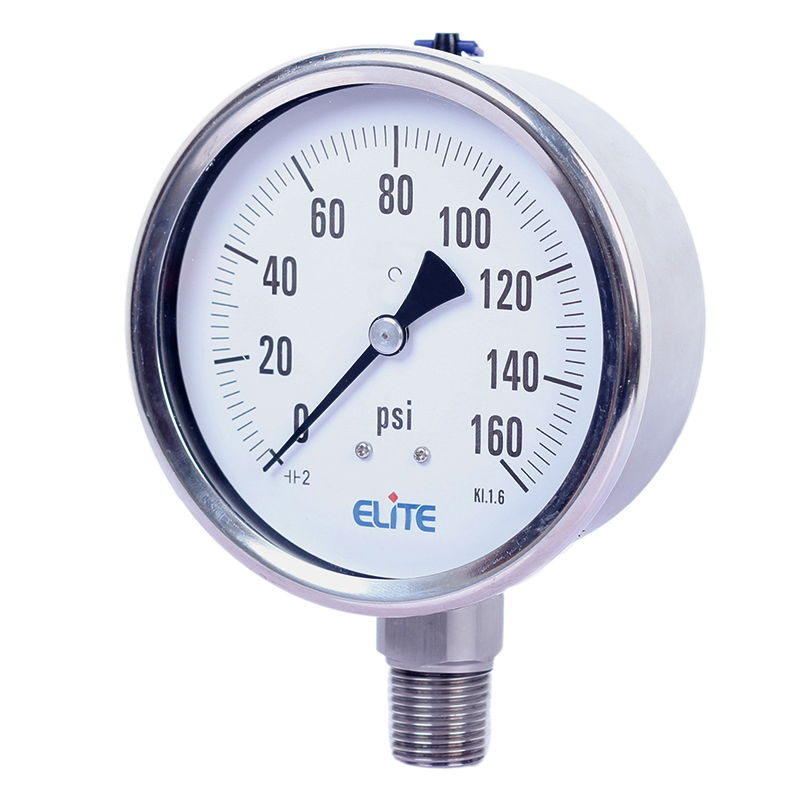

Economy All SS Pressure Guages

SKU:P-37

Category:

Pressure

Description
Datasheet

Product Description

SPECIAL FEATURES

Stainless Steel Case & Measuring System

316 L SS/304 SS Wetted Parts Welded With Case

Helium Leak Tested Ready For Oxygen Use

Standard Followed ASME ?B.40.1

IP:66

SPECIFICATION

Ambient Temperature : -4 ?F (-20?C) to + 1 50?F (+65?C)

Process Temperature : Max. 392?F (200?C)

Operating Pressure Range : 75% of Scale Value

Over Pressure Limit : 125% of Max. Scale Value

Case : AISI 304 SS

Joints : Tig Argon Arc Welding

Socket : AISI 304 SS

Bourdon: AISI 316L SS

Movement : Brass

Dial : Aluminum

Pointer : Fixed

Window : PC Lens

Range : Vacuum to 10,000psi

ACCURACY AS PER ASME B.40.1

1.5″/2″ : 3-2-3 (Grade B)

2.5″/3″/4″ : 2-1-2 (Grade A)
