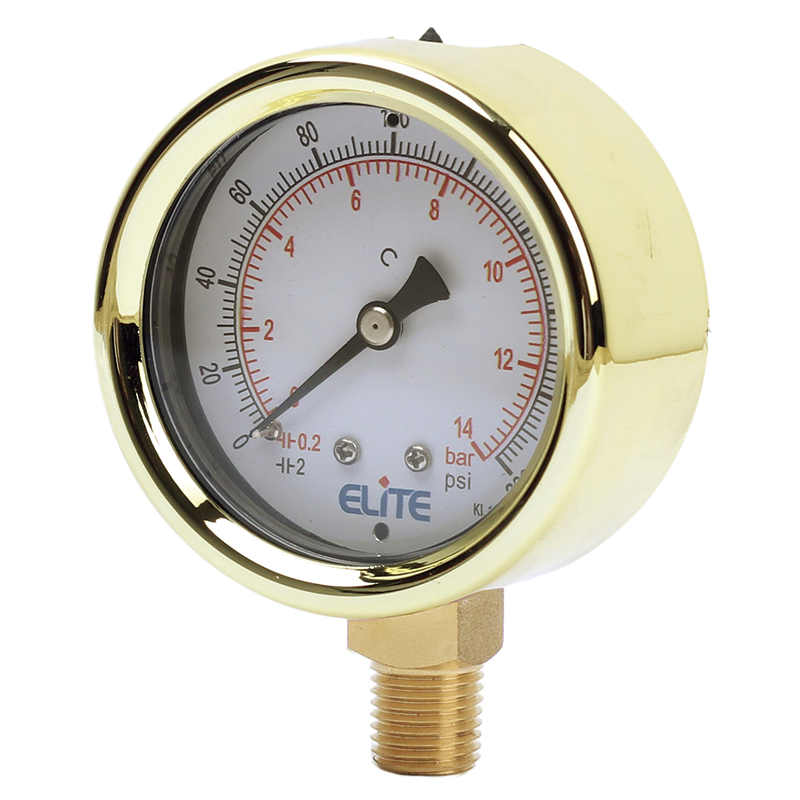

Forged Brass Guages

SKU:P-18

Category:

Pressure

Description
Datasheet

Product Description

SPECIAL FEATURES

Standard Followed ASME-B 40.1 / EN837-1

Forged Brass Case

Rugged Construction

Dry or Liquid Version

IP 65

SPECIFICATION

Ambient Temperature : -4 ?F (-20?C) to + 150?F (+65?C)

Process Temperature : Max. 248?F (120?C)

Operating Pressure Range : 75% of Scale Value

Over Pressure Limit : 125% of Max. Scale Value

Case : Forged brass

Joints : Alloy brazing/Soldering

Socket : Copper Alloy

Bourdon : Copper Alloy

Movement : Copper Alloy

Dial : Aluminum

Pointer : Fixed

Window : PC Lens

Range : Vacuum to 6000PSI

ACCURACY AS PER ASME B.40.1

2.5? : 2-1-2(GRADE A )
