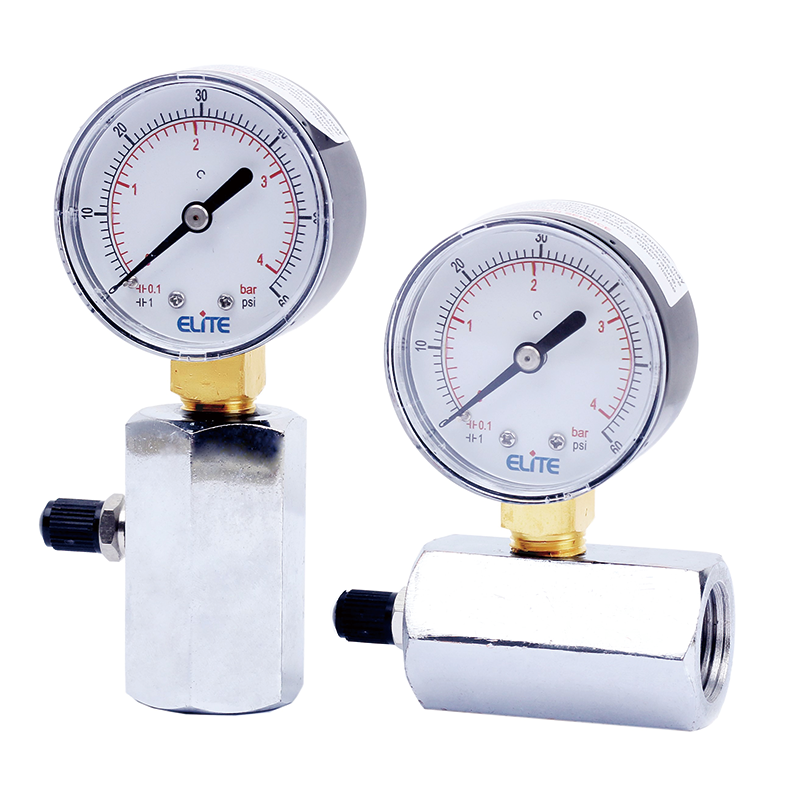

Gas Test Pressure Gauges

SKU:P-23

Category:

Pressure

Description
Datasheet

Product Description

SPECIAL FEATURES

Economy Version

Black Steel Case And Plastic

Chrome Plated Block Valve

Standard Followed AMSE ?B.40.1/EN837-1

IP:52

SPECIFICATION

Ambient Temperature : -4 ?F (-20?C) to + 150?F (+65?C)

Process Temperature : Max. 248?F (120?C)

Operating Pressure Range : 75% of Scale Value

Over Pressure Limit : 125% of Max. Scale Value

Case : Black Steel Case

Joints : Alloy Brazing / Soldering

Socket : Copper Alloy

Bourdon : Copper Alloy

Movement : Copper Alloy

Block: Chrome Plated Steel Block

Dial : Aluminum

Pointer : Fixed

Window : Snap-in Plastic lens

Range : 15psi to 300psi

ACCURACY AS PER ASME B.40.1

2? : 3-2-3 (GRADE B )
