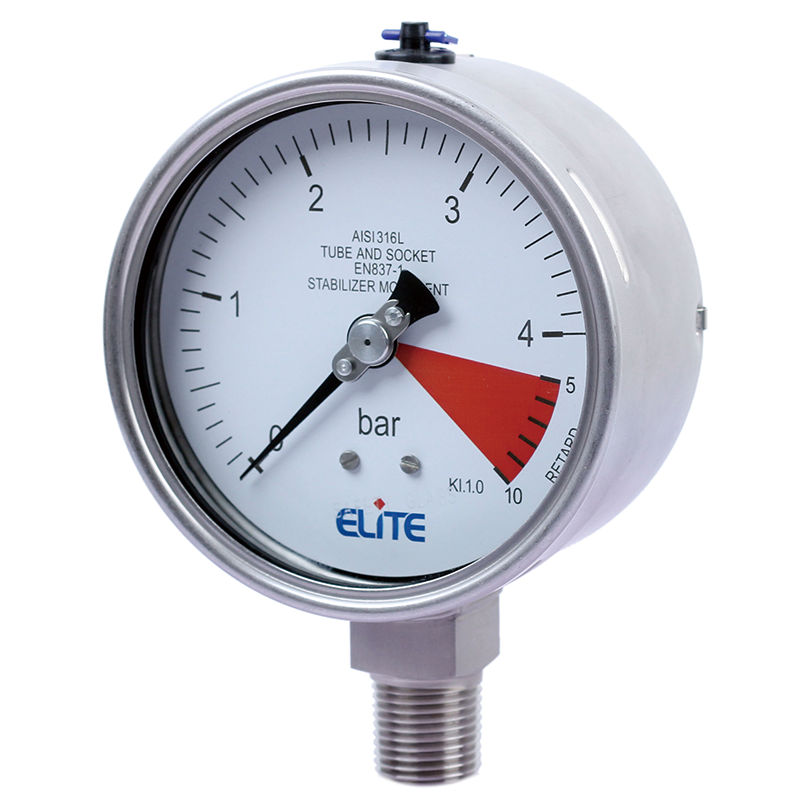

High Over Pressure Safety Gauges
SKU:
P-17
Category:
Pressure
Share:
Description
Datasheet
Product Description
SPECIAL FEATURES
Standard Followed ASME-B 40.1 / EN837-1
Pressure Relieving Back For Increased Safety
Stainless Steel Case With Solid Front Design
Wetted Parts AISI 316L Stainless Steel
Build in Stabilizer Movement
Dry or Liquid Version
Silicone fillable version availability
NACE MR 0175 Compliance
Helium Leak Tested
Laser Welded Design
Ready For Oxygen Service
Internal Vacuum/ Over Pressure Stops
IP 66
SPECIFICATION
Ambient Temperature: -4 ?F (-20?C) to +150?F (+65?C)
Process Temperature: Max. 392?F (200?C)
Operating Pressure Range: 75% of Scale Value
Over Pressure Limit: not suitable
Case: AISI 304 SS
Joints: Tig Argon Arc Welding
Socket: AISI 316L SS
Bourdon: AISI 316L SS
Movement: AISI 304 SS
Dial: Aluminum
Pointer: Micro Zero Adjustable
Window: Safety Glass
Range: Vacuum to 600PSI
ACCURACY AS PER ASME B.40.1
4?/4.5″/6″ : 1-1-1 (GRADE 1A ) For Range Scale Only &
4-3-4 (GRADE C) For End Scale Only (End scale covered with triangle)
