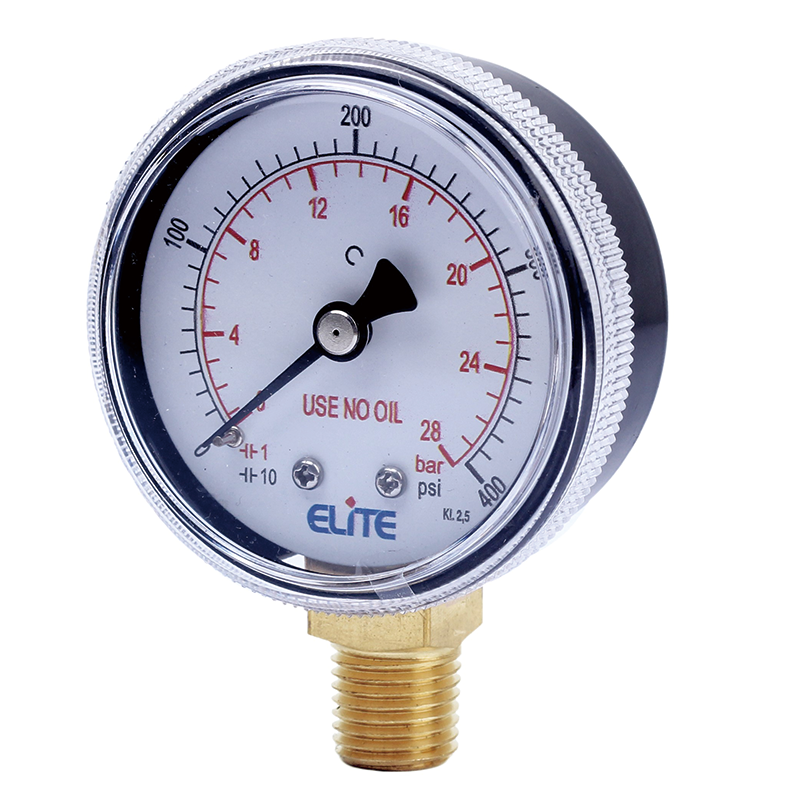

Oxygen Service Pressure Gauges

SKU:P-38

Category:

Pressure

Description
Datasheet

Product Description

SPECIAL FEATURES

Economic Type

Oxygen Clean Service Version

Standard Followed ASME ?B.40.1 / EN837-1

IP:53

SPECIFICATION

Ambient Temperature : -4 ?F (-20?C) to + 150?F (+65?C)

Process Temperature : Max. 250?F (120?C)

Operating Pressure Range : 75% of Scale Value

Over Pressure Limit : 120% of Max. Scale Value

Case : Steel Powder Coated

Joints : Alloy Brazing / Soldering

Socket : Copper Alloy

Bourdon : Copper Alloy

Movement : Copper Alloy

Dial :Aluminum

Pointer : Fixed

Window : Twist-on plastic lens

Range : Vacuum to 6000 psi

ACCURACY AS PER ASME B.40.1

2? : 3-2-3 (Grade B)

2.5? : 2-1-2 (Grade A)
