Process Temperature : -40?C to 200?C or as per fill fluid
Instrument Connection : 1/2″ NPT(F)
Process Connection: As per diagram below
Mounting: Direct (Without Spring & Capillary)
Diaphragm: AISI 316L SS
Body & Floating Ring : AISI 316 SS
Fill Fluid: Silicon Oil -DC 200
APPLICATIONS

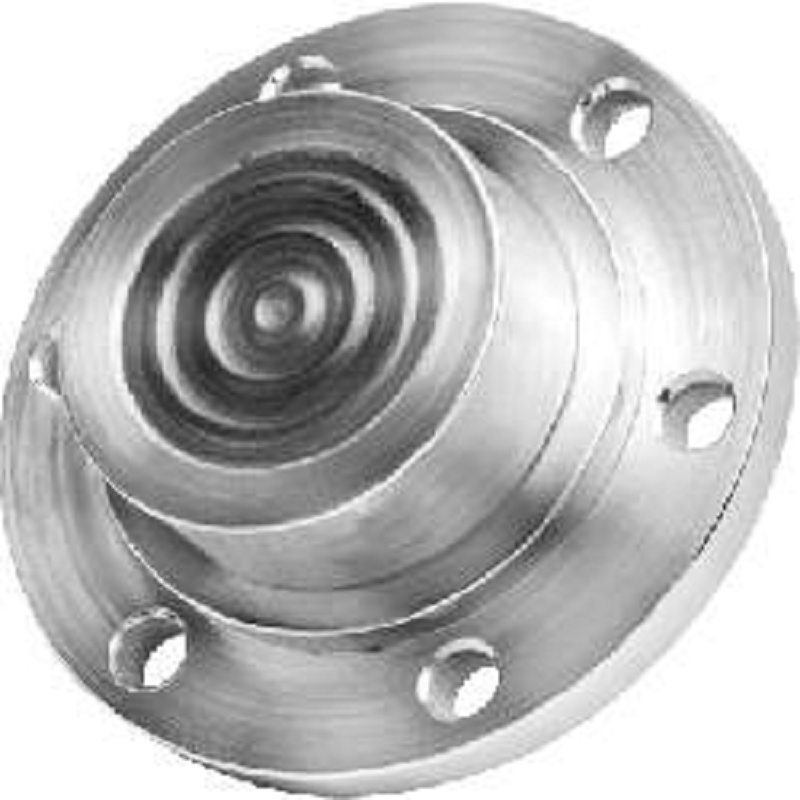

Diaphragm seals are provided in the Instrument like Pressure Gauges , Switches, Transmitters in order to isolate the sensing element from the main service due to It?s Corrosive , Viscous and Sedimented nature and to avoid clogging and solidification.
These kind of seals are widely used in the Viscous & Corrosive services where flushing is required periodically & frequently
