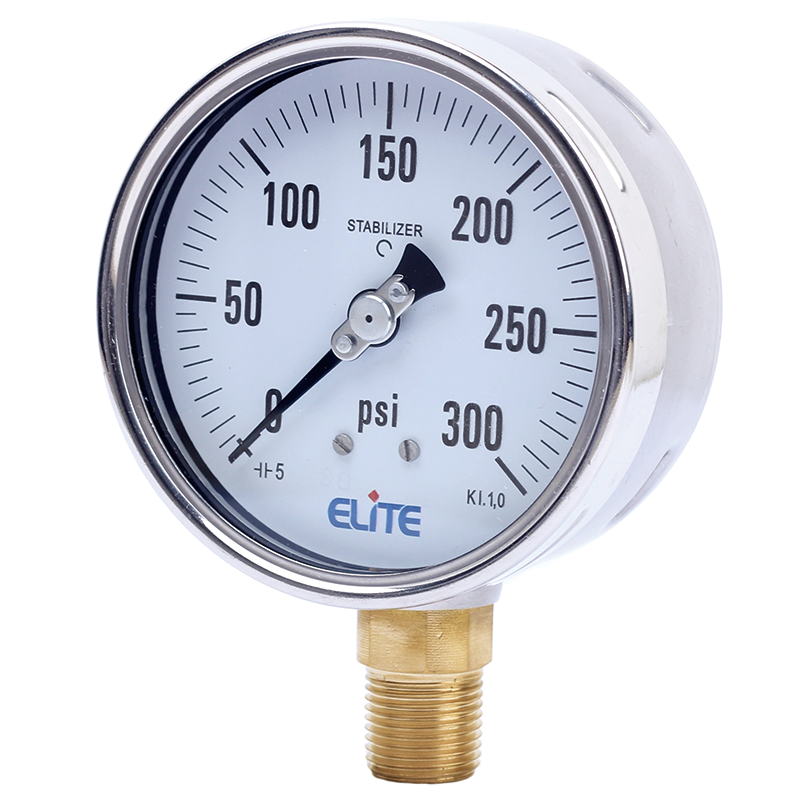

SS Case Brass Pressure Gauges-DIN Case

SKU:P-35

Category:

Pressure

Description
Datasheet

Product Description

SPECIAL FEATURES

Standard Followed ASME-B 40.1 / EN837-1

Cost Effective

Build in Stabilizer Movement

Dry or Liquid Version

40mmTemperature Compensated Blow Out Disc

IP 65

SPECIFICATION

Ambient Temperature : -4 ?F (-20?C) to + 150?F (+65?C)

Process Temperature : Max. 248?F (120?C)

Operating Pressure Range : 75% of Scale Value

Over Pressure Limit : 125% of Max. Scale Value

Case : AISI 304 SS

Joints : Alloy brazing/Soldering

Socket : Copper Alloy

Bourdon : Copper Alloy

Movement : Copper Alloy

Dial : Aluminum

Pointer : Fixed/Micro Zero Adjustable

Window : Safety Glass

Range : Vacuum to 6,000 psi

ACCURACY AS PER ASME B.40.1

2.5″/3″ : 2-1-2 (GRADE A)

4?/6? : 1-1-1 (GRADE 1A)
