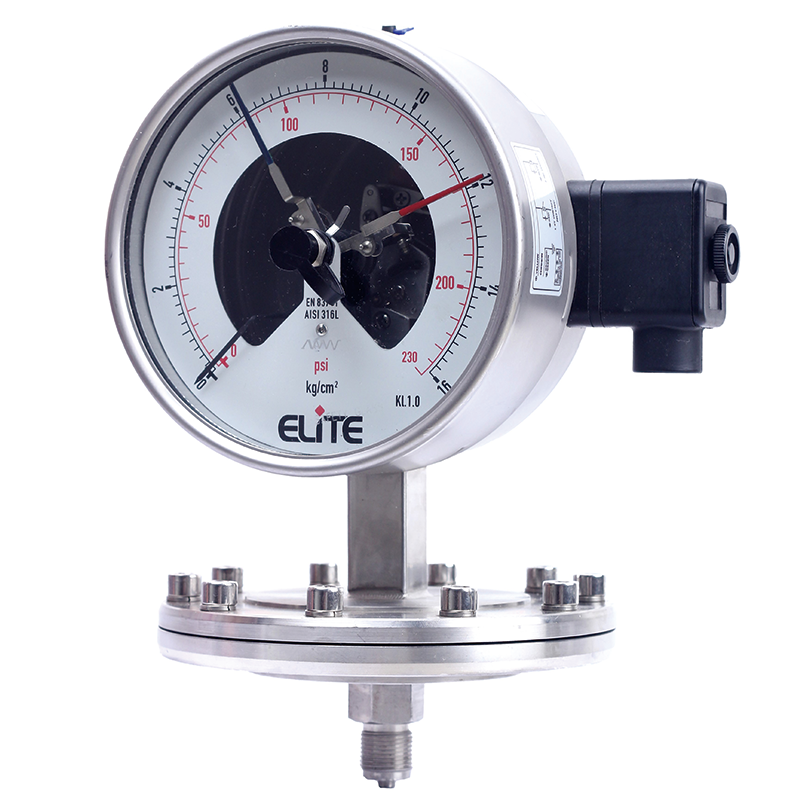

SS Case Low & High Pressure Gauges

SKU:P-13

Category:

Pressure

Description
Datasheet

Product Description

SPECIAL FEATURES

Stainless Steel Case & Measuring System

Flanged Or Screwed Connection

Standard Followed AMSE ?B.40.1 / EN837-3

Oil Filled Vibration Proof Type is Optional

IP:65

SPECIFICATION

Ambient Temperature : -4 ?F (-20?C) to + 150?F (+65?C)

Process Temperature : Max. 212?F (+100?C)

Operating Pressure Range : 75% of Scale Value

Over Pressure Limit : 125% of Max. Scale Value

Case : AISI 304 SS

Joints : Tig Argon Arc Welding

Socket : AISI 316L SS

Diaphragm : AISI 316L SS

Movement : AISI 304 SS

Dial :Aluminum

Pointer : Micro Zero Adjustable

Window : Safety Glass

Range : 15″WC-200psi

ACCURACY AS PER ASME B.40.1

4?/6? : 2-1-2 (GRADE A)
