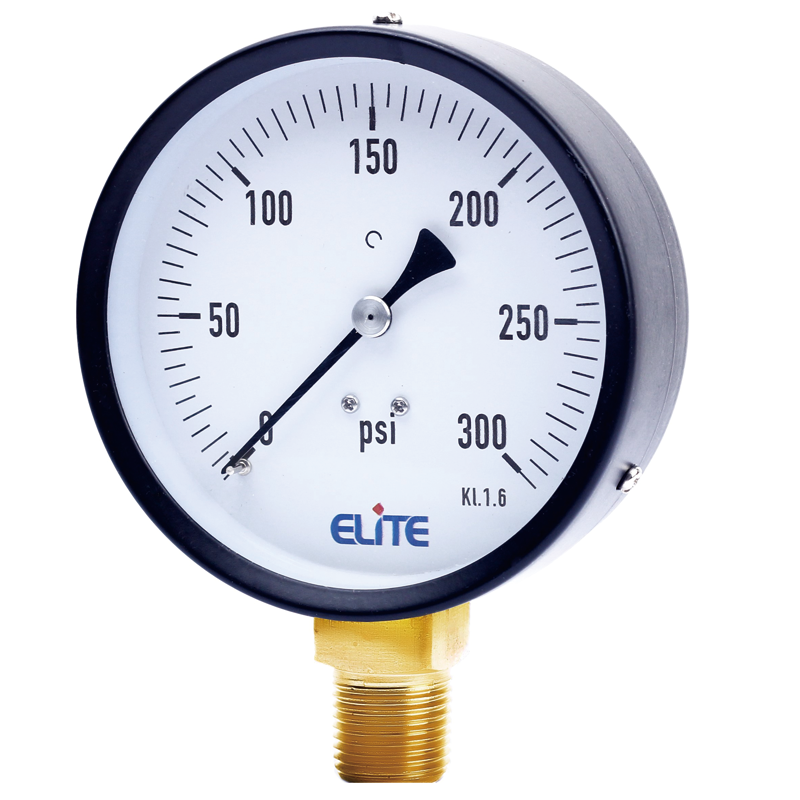

Utility Gauges

SKU:P-01

Category:

Pressure

Description
Datasheet

Product Description

SPECIAL FEATURES

Economical Version

General Purpose Applications

Standard Followed:ASME-B.40.1/EN837-1

SPECIFICATION

Ambient Temperature: -4?(-20?) to+150?(+65?)

Process Temperature: Max. 250?(120?)

Operating Pressure Range: 75% of Scale Value

Over Pressure Limit: 120% of Max.Scale Value

Case: Steel,Powder Coated

Joints: Alloy Brazing/Soldering

Socket: Copper Alloy

Bourdon: Copper Alloy

Movement: Copper Alloy

Dial: Aluminum

Pointer: Fixed

Window: Sheet Glass

Ranges: Vacuum to 6000psi

ACCURACY AS PER ASME B.40.1

1.5″/2″ : 3-2-3 (Grade B)

2.5″/3″/4″ : 2-1-2 (Grade A)
