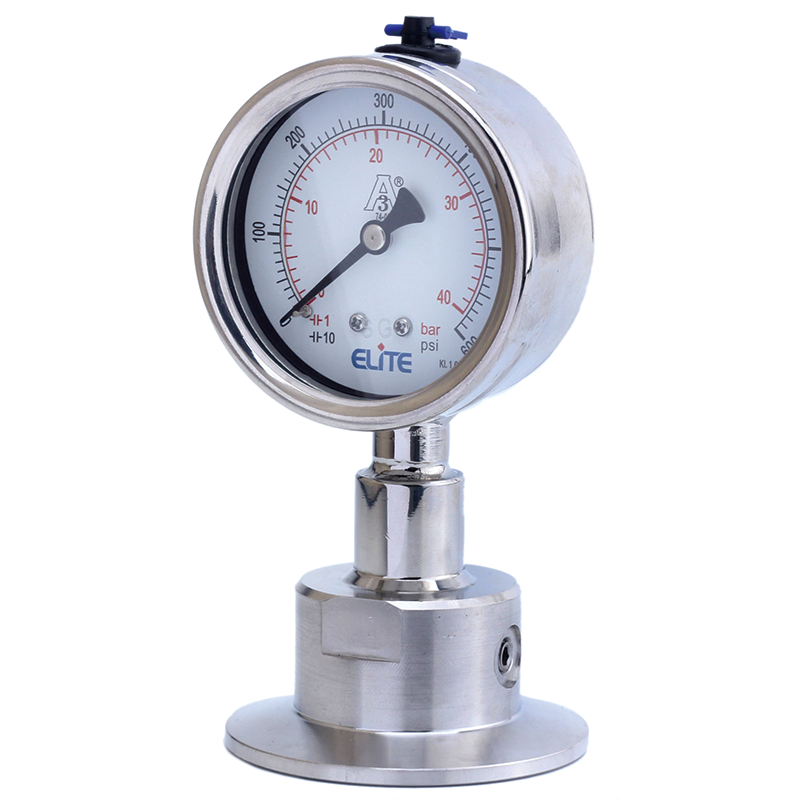

All SS Sanitary Pressure Gauges
SKU:
P-20
Category:
Pressure
Share:
Description
Datasheet
Product Description
SPECIAL FEATURES
Standard Followed ASME-B 40.1 / EN837-3
Wetted Parts AISI 316L Stainless Steel
Build in Stabilizer Movement
Diaphragm Seal Integrally Built With Gauge
Dry or Liquid Version
NACE MR 0175 Compliance
Helium Leak Tested
Provides Best Hygiene Factor
IP 65
SPECIFICATION
Ambient Temperature : -4 ?F (-20?C) to + 150?F (+65?C)
Process Temperature : Max. 212?F (100?C)
Operating Pressure Range : 75% of Scale Value
Over Pressure Limit : 125% of Max. Scale Value
Case : AISI 304 SS
Joints : Tig Argon Arc Welding
Socket : AISI 316L SS
Bourdon : AISI 316L SS
Movement : AISI 304 SS
Diaphragm: AISI 316L SS
Sanitary Seal: 1 1/2″ in AISI 316 SS
Dial : Aluminum
Pointer : Fixed /Micro Zero Adjustable
Window : Safety Glass
Range : Vacuum to 600 psi
ACCURACY AS PER ASME B.40.1
2.5?/3″ : 2-1-2 (GRADE A )
4? : 1-1-1 (GRADE 1A )
