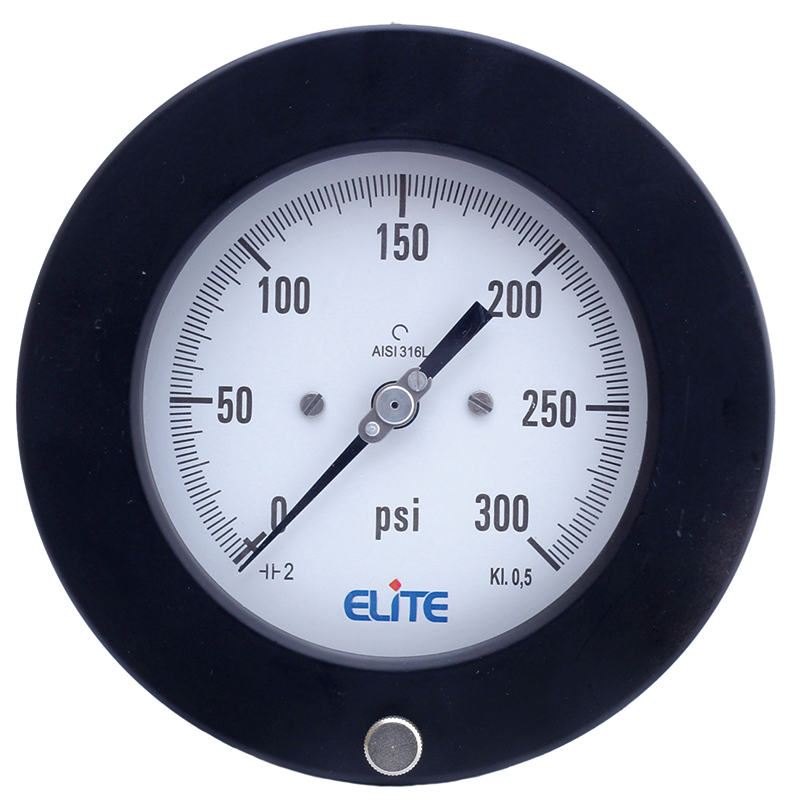

Aluminium Gauges

SKU:P-03

Category:

Pressure

Description
Datasheet

Product Description

SPECIAL FEATURES

Aluminum solid front case

Blow out back

Standard followed ASME-B.40.1

SS 316L Socket & Bourdon

Helium Leak Tested

Built in Stabilizer Movement

Ready For Oxygen Use

Internal Vacuum /Over Pressure Stop

IP 55

SPECIFICATION

Ambient Temperature: -4?(-20?)To 150?(+65?)

Process Temperature: Max.392?(200?)

Operating Pressure Range: 75% of scale value

Over Pressure Limit: 125% of Max.scale value

Case: Aluminum

Joints: Tig Argon Arc Welding

Socket: AISI 316L

Bourdon: AISI 316L

Movement: AISI 304

Dial: Aluminum

Pointer: Micro Zero Adjustable

Window: PC lens

Ranges: Vacuum to 10,000psi

ACCURACY AS PER ASME B.40.1

4.5″/6″/8.5″ : 0.5 (Grade 2A)

8.5″ : 1-1-1 (Grade 1A
