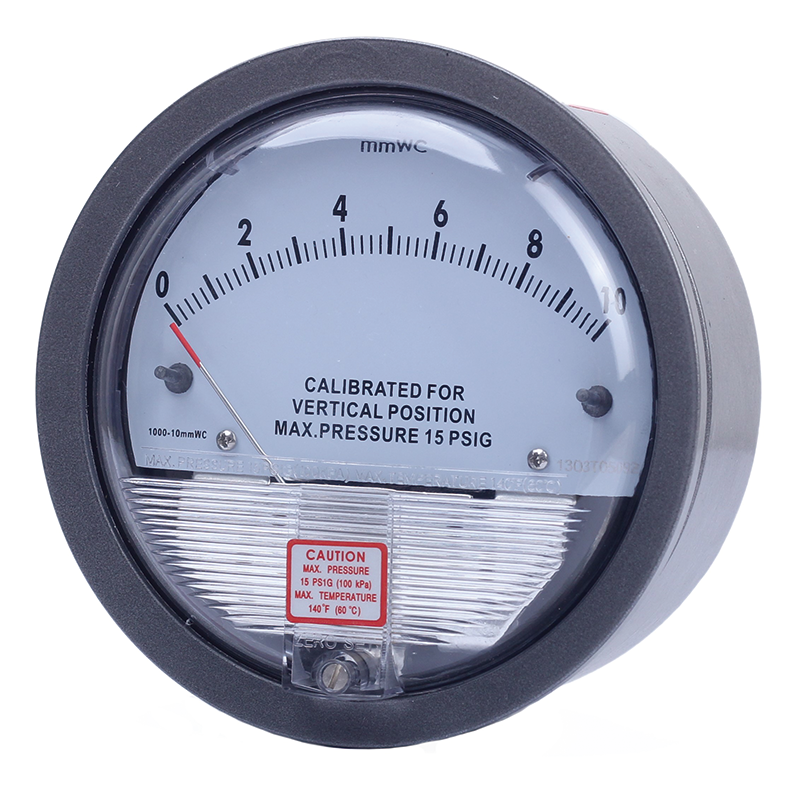

Magnetic Differential Pressure Guages

SKU:P-24

Category:

Pressure

Description
Datasheet

Product Description

SPECIAL FEATURES

Die Cast Aluminum

And Chrome body Part After

168 Hours Salt Bath Test

The Final Coating Of Dark Gray Exterior

Indicate Low Air Or Non-Corrosive gas

Pressure-eighter Positive

Negative(vacuum) Of Differential

The Design Resists Shock

Vibration and Over-pressures

No Manometer Fluid To Evaporate

Freeze Or Cause Toxic Or Leving Problems

SPECIFICATION

Dimension: 4-3/4″ dia. x 2-3/16″ Deep

Weight: 1 1b.2oz.(510g)

Fonished: Back Dark Gary Enamel

Connection: 1/8″NPT(F) Hight And Low Pressure Taps

Duplicated ,One Pair Siad And One Pair Back

Accuracy: +4% Of Full Scale, At 70? (21.1?)

Pressure Rating: 15 psi(1.03 bar)

Ambient Temperature: 20-140?(-7-60?)

Standard Gage Accessories: 1/8″NPT(M) Plugs For Duplicate Pressure Taps

1/8″NPT(M)Pipe Threat To Rubber Tubing Adapters

And Three Flush Monting Adapters With Screws
