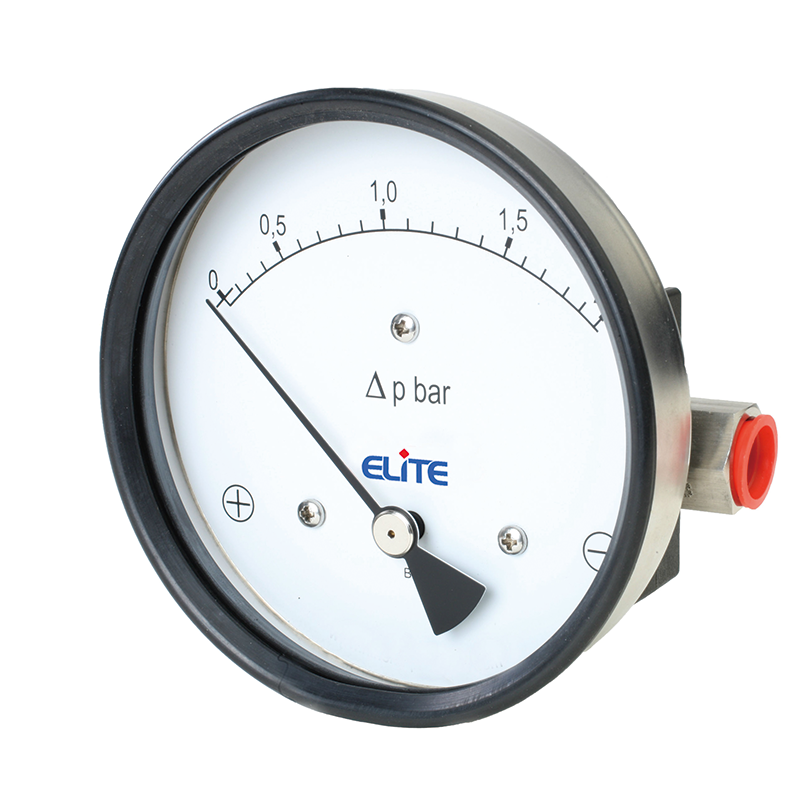

Piston Type Differential Pressure Gauges

SKU:P-22

Category:

Pressure

Description
Datasheet

Product Description

SPECIFICATION

Accuracy : + 3% Of The FSD (Ascending)

Migration : Minor From High To Low Port

Range : 0-0.25 to 0-10bar/psi or psi/kPa Dual Scale

First Marking On The Scale : 15% Of The FSD

Sensing Element : Magnetic Piston With Compression Spring

Wetted Parts : SS316,SS 302 Compression Spring,Seals & Ceramic Magnet

Case Material & Dial Size : Stainless Steel (SS 304):2.5″,3.5″,4.0″

Engineering Polymer:2.5″

Bayonet:4.0″

Mounting : Direct,Front Flange,2″Pipe & Surface Mounting

Maximum Working Pressure : 100,250 & 400 bar

Maximum Process Temperature : 0 to 80?(32 to 175 ?)

Enclosure : Engineering Polymer

Seals: Buna-N & Viton

Window : Float Glass(std.),Toughened Glass,Acrylic & Safety Glass

Connection : 1/4″BSP(F) Std.Optional 1/4″NPT(F)

Porting : In-line

Over Range Protection : Up To The Max.Working Pressure From High & Low Side

Protrction For Gauge & Switch : IP 65
