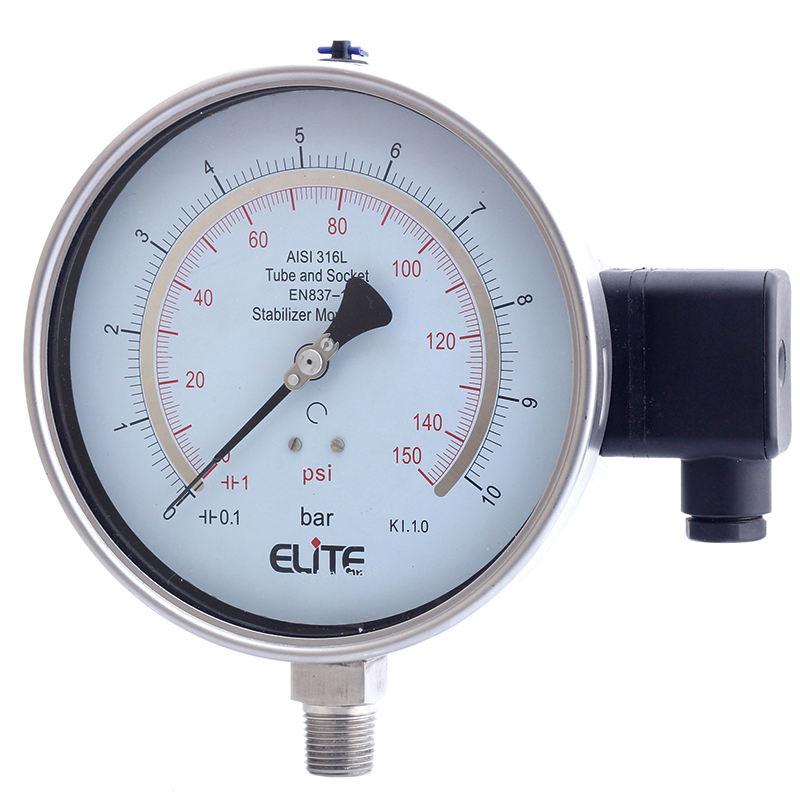

Transmitter Pressure Gauges
SKU:
P-36
Category:
Pressure
Share:
Description
Datasheet
Product Description
SPECIAL FEATURES
CE Approved Transmitter
Local Display With 4 To 20mA Output
Stainless Steel Case & Measuring System
Helium leak tested
Standard Followed ASME ?B.40.1 / EN837-1
IP:54
SPECIFICATION
Ambient Temperature : -4 ?F (-20?C) to + 150?F (+65?C)
Process Temperature : Max. 392?F (200?C)
Operating Pressure Range : 75% of Scale Value
Over Pressure Limit : 125% of Max. Scale Value
Case : AISI 304 SS
Joints : Tig Argon Arc Welding
Socket : AISI 316L SS
Bourdon: AISI 316L SS
Dial :Aluminum
Pointer : Mirco Zero Adjustable
Window : Safety Glass
Range : Vacuum to 7500psi
Signa l Output: 4-20mA DC(2-lime)
1-5V.DC(3-lime)
Working Voltage: 24V.DC
Element: Ceramic Sensor
Junction Box: PVC
ACCURACY AS PER ASME B.40.1
4?/6? : 1-1-1 (GRADE 1A)
Datasheet
Related products
All SS Pressure Guage Capsule Type (Low Pressure)
Model: P-06
All SS High Pressure Gauges
Model: P-21
Oxygen Service Pressure Gauges
Model: P-38

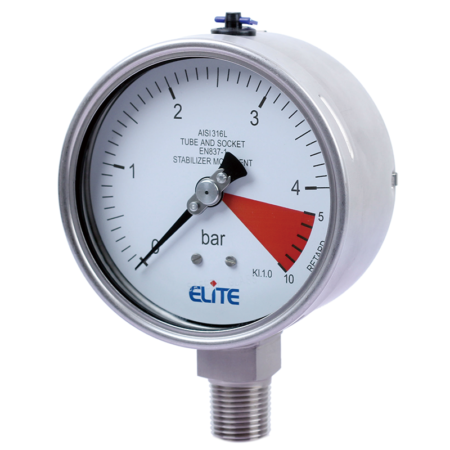

High Over Pressure Safety Gauges
Model: P-17
All SS Pressure Gauge
Model: P-11
Differential Guages
Model: P-14
All SS Solid Front Pressure Gauge
Model: P-09

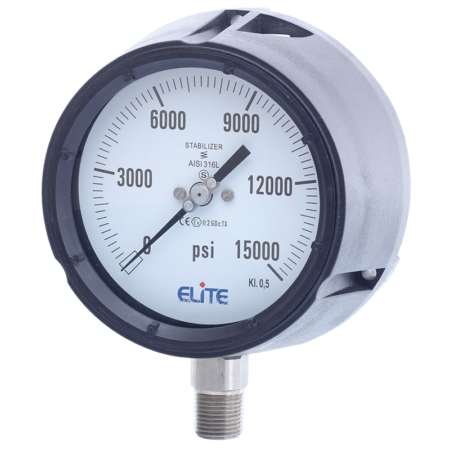

Phenolic Case Gauges
Model: P-05

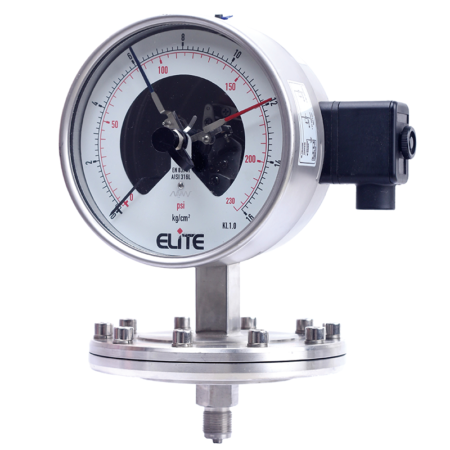

SS Case Low & High Pressure Gauges
Model: P-13

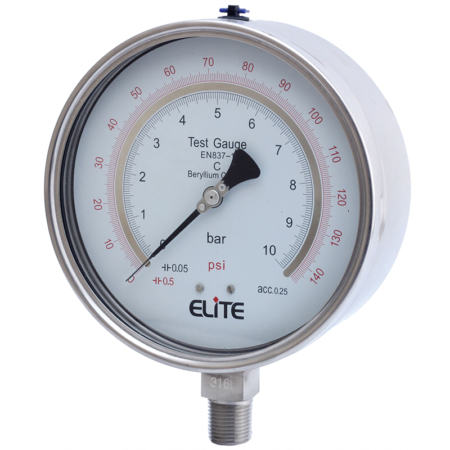

SS Case Test Gauges
Model: P-15

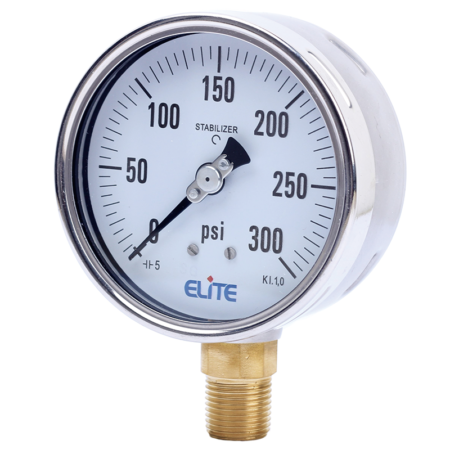

SS Case Brass Pressure Gauges-DIN Case
Model: P-35

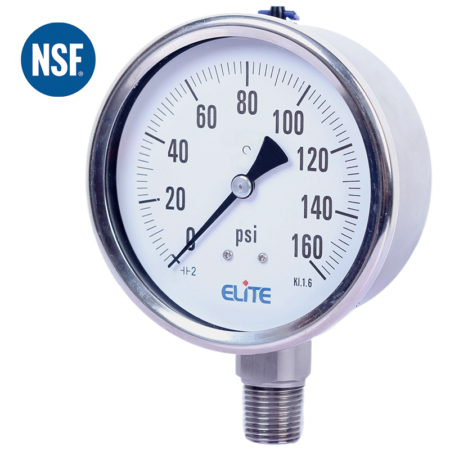

NSF Pressure Gauges
Model: P-39
Previous Product

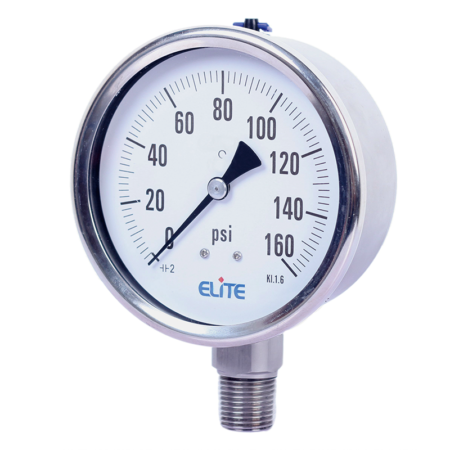

Economy All SS Pressure Guages
